The excavation-based approach that addresses groundwater and hydrostatic pressure at the foundation exterior, not after it has already come inside.
Exterior waterproofing is the most comprehensive approach to eliminating basement moisture because it addresses the problem where it originates: at the exterior face of the foundation wall. Rather than managing water that has already entered the building envelope, this method stops it from reaching the wall surface entirely. The process begins with full excavation around the affected perimeter, which requires removing soil from the foundation level down to the footing to expose the complete wall surface. This depth is critical because partial excavation leaves untreated wall area below grade where hydrostatic pressure and soil moisture continue to act against the foundation.

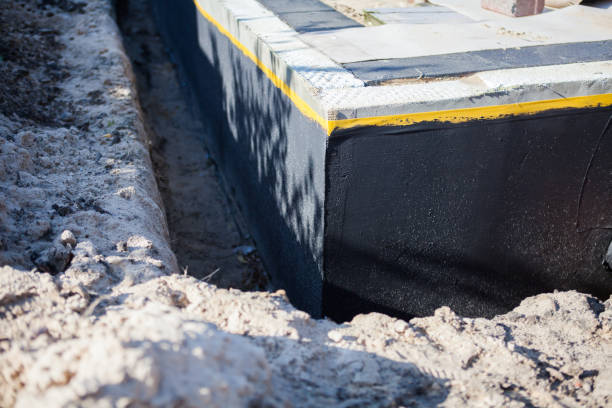

Once the foundation wall is exposed, any existing deteriorated coatings, efflorescence, or cracked parging are removed to create a clean, stable substrate. Cracks in the foundation wall itself are filled and surface-prepped before any waterproofing material is applied. The primary waterproofing layer for most Medinah applications is a rubberized asphalt membrane applied by roller or spray to the cleaned wall surface. This material bonds directly to masonry or poured concrete, bridging hairline cracks and micro-fissures that would otherwise serve as water entry pathways. The membrane is applied in multiple passes to achieve a specified minimum thickness, and the material's flexibility accommodates the minor seasonal movement that occurs in Medinah, IL soil conditions without cracking or delaminating.
The drainage board layer in an exterior waterproofing system does more than protect the membrane during backfill. It functions as a permanent drainage plane that redirects soil water downward to the footing pipe throughout the life of the structure. Without this layer, even a perfectly applied membrane is subject to hydraulic pressure from standing water in the adjacent soil during extended rain events. The dimple board eliminates that pressure by giving water a path away from the wall surface before it can accumulate to pressure-causing depth. In Medinah, where seasonal soil saturation can persist for extended periods, this drainage plane is a critical element of every exterior waterproofing specification.
Seasonal timing for exterior waterproofing in Medinah is often a question homeowners raise during the assessment. While spring and fall are typically optimal in Medinah, IL climates for this type of work, late summer installations are also common and effective when the excavation conditions and membrane cure windows align. We monitor extended forecasts when scheduling exterior projects and build adequate cure time into the project timeline before backfill begins. Winter work is evaluated on a case-by-case basis depending on frost depth, ground conditions, and the urgency of the moisture problem. We are transparent about seasonal limitations and advise homeowners accurately rather than scheduling work that conditions do not support.
When advising Medinah homeowners on exterior versus interior approaches, we document specific evidence of water entry mechanism: wall seepage at mid-height indicates hydrostatic pressure against the exterior wall surface, which exterior waterproofing directly resolves. Water entering at the floor-wall joint is typically addressed by interior drainage. Many older Medinah homes show both conditions simultaneously, and a combined approach treating the exterior walls while installing perimeter interior drainage is sometimes the most comprehensive solution. We explain the evidence and the logic behind every recommendation so homeowners can make informed decisions about their specific structure.
Excavation expertise, proven materials, and a warranty that means something.
Excavation to footing level is non-negotiable for effective exterior waterproofing. We do not offer partial-depth options that leave untreated wall area below grade.
The membrane we specify is rated for continuous soil contact, remains flexible across Medinah, IL temperature ranges, and bridges existing micro-fissures in the foundation surface.
Our exterior waterproofing work is backed by a written workmanship warranty covering membrane adhesion, drainage board installation, and footing pipe placement.
Every service performed to current waterproofing industry standards.
Complete excavation, membrane application, drainage board installation, and footing pipe for the full foundation perimeter. The comprehensive solution for persistent moisture intrusion in Medinah homes.
Learn moreWe document which sections show evidence of active moisture entry and design targeted scopes that address the actual problem areas rather than defaulting to full perimeter work where it is not needed.
Get an assessmentSurface preparation, crack repair, and re-application of current-generation rubberized membrane over aged original coatings restores exterior protection at a fraction of total foundation replacement costs.
Schedule a reviewThe footing pipe and drainage board are the components that keep the membrane working as designed by eliminating hydrostatic pressure buildup at the wall base.
Learn about drainageWindow well issues are often treated as separate from the main waterproofing project, but connecting wells to the perimeter drainage system creates a cohesive exterior moisture management approach.
Address window wellsBackfill compaction, surface grade correction to direct water away from the foundation, and landscape restoration are included in our Medinah exterior waterproofing projects.
See full scopeFrom assessment to restored landscape, four stages that deliver permanent basement protection.
Site evaluation covers soil type, existing drainage, foundation material, and any evidence of prior waterproofing.
Excavation depth and width are documented before work begins so the scope is clearly defined.
Each phase is inspected before the next begins to ensure material performance is not compromised by sequencing shortcuts.
Landscape restoration and grade verification complete the project before final documentation is provided to the homeowner.
Real results from real homeowners who chose the permanent solution.
We had tried interior drainage twice over the years and always ended up with some seepage after heavy rain. The exterior excavation and membrane work addressed the actual wall surface and we went through the wettest spring in years without a drop of water in the basement. The crew was professional and cleaned up the yard completely.
The excavation was significant work but the team was organized and efficient. They staged the soil carefully, worked methodically around the foundation, and restored the grade correctly at the end. The detailed written scope before the project started meant I knew exactly what to expect at each stage.
Fair pricing for the scope of work involved. The assessment was detailed and the proposal broke down every line item. No surprises during the project and the crew left the site cleaner than they found it.
Direct answers about the process, cost, and long-term results.
Excavation disruption is real and should be factored into the project decision. Our assessment walks around the full perimeter to document every item in the excavation zone and note which plants, structures, or materials are at risk. Homeowners who want to preserve specific plantings can arrange for a landscaper to relocate them before excavation begins. We restore the grade and clean the site thoroughly, but landscape features within the trench footprint are unavoidably affected by the process.
The comparison is not simply about which approach is better in the abstract; it is about which approach addresses the specific moisture entry mechanism present in your Medinah home. Wall seepage that stains the middle of the block, migrates through cracks, or appears after saturation events is the profile that exterior waterproofing resolves most definitively. Floor-joint entry or seepage that follows the perimeter at the floor level responds better to interior channel systems. When both conditions are present, a combined approach is sometimes the most complete solution.
{Quality exterior waterproofing using modern rubberized membrane systems can protect a foundation for 20 to 30 or more years when properly installed on a well-prepared surface. The original factory-applied bituminous coatings used on homes built through the 1980s typically had a design life of 10 to 15 years under favorable soil conditions. Modern rubberized membrane materials are substantially more durable, maintain flexibility under soil movement and temperature cycling, and retain adhesion over extended periods. The key variable in longevity is surface preparation quality and membrane thickness applied; underprepared substrates and thin single-pass applications consistently underperform.|Longevity depends on the membrane product specified, surface prep quality, and subsequent drainage board and footing pipe function. When drainage board is properly installed and the footing pipe remains clear and functional, the membrane experiences minimal hydrostatic load because water is redirected before it can accumulate against the wall surface. Regular inspection of the exterior grade around the foundation and the footing drain outlet ensures the drainage system continues to function as designed over the years.}
Winter exterior waterproofing in Medinah, IL is constrained by frost depth, ground freeze conditions, and membrane cure temperature requirements. Most rubberized membrane products have a minimum application temperature specification, typically around 40 degrees Fahrenheit, and require the substrate to be above that temperature during application and cure. In mid-winter conditions, achieving this without specialized temporary enclosure equipment is not reliable, and we do not schedule exterior membrane application when conditions do not support proper cure. In early winter before frost depth becomes prohibitive, or in late winter during extended mild stretches, work may be feasible depending on specific site conditions.
Landscaping impact is real but temporary for most items. Lawn areas typically recover within one to two growing seasons after backfill and reseeding. Established shrubs that are carefully relocated before excavation can be successfully replanted in the same beds after completion. Large mature trees within the excavation zone require a separate arborist evaluation to determine whether root disruption at excavation depth would pose a risk to the tree's health. We document these considerations clearly during the assessment.
We do not quote specific ROI percentages because every home and every market is different. What we do is document the specific risks of continued moisture intrusion in your Medinah home and provide a clear picture of what exterior waterproofing addresses versus what it does not. Homeowners who understand both the protection provided and its limitations are consistently more satisfied with their investment than those who received oversimplified answers.
